High quality bar soap making machine
High quality bar soap making machine

High quality bar soap making machine

Product Attributes :

Production name : bar soap making machine

Use : bath soap manufacturing machine line

Capacity : 100-1000kg/h

Advantage : Mold shape and logo can be customized!

Product Description

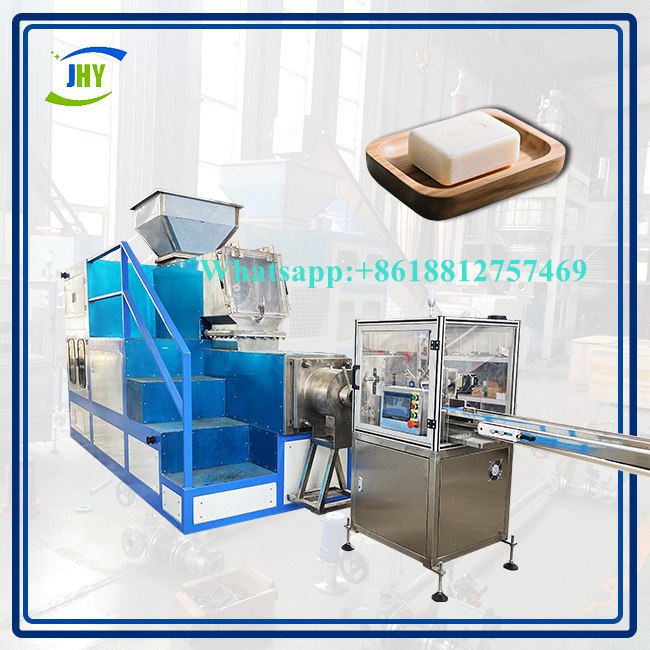

 High quality bar soap making machine

If you need a soap molding machine that uses soap grains as raw materials, this bar soap making machine production line would be a good choice. It can stably produce 100-300 kg of soap per hour. Through the continuous process of raw material mixing, grinding, bar production and block cutting, it can produce products with a fatty acid content of 40%-80%.

More importantly, this bar soap making machine can accurately meet personalized needs. The size, weight and even pattern of the soap can be tailored to your requirements. Moreover, the equipment is made of stainless steel, which is sturdy and durable, and can provide strong guarantee for long-term production.

Production conditions:

a. Water: 1 cubic meter of circulating water;

b. Electricity: 25 kilowatts/hour, 380/220V, 50/60 Hz;

c. Workshop requirements: 15 meters long, 5 meters wide, and 3.5 meters high (including the worker operation area);

d. Labor requirements: 4-6 people/shift.

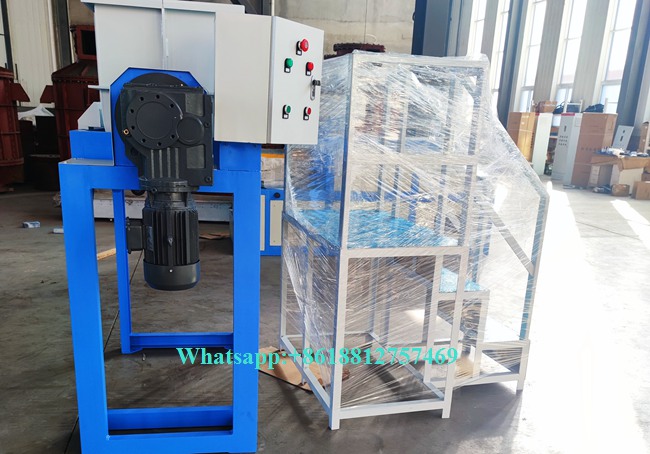

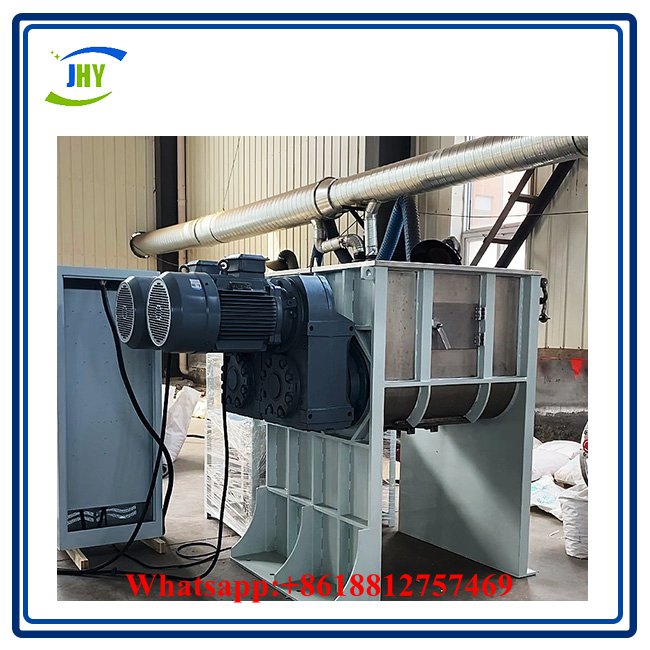

Soap Mixer:

In bar soap making, this mixing machine – an essential part of the bar soap making machine setup – can effectively mix various additives with soap particles to ensure that the final mixture meets the formula standards. It is equipped with a hard-toothed reducer from a well-known domestic brand, which is durable and has a service life far exceeding that of ordinary equipment. At the same time, the operating platform makes the operation process more convenient.

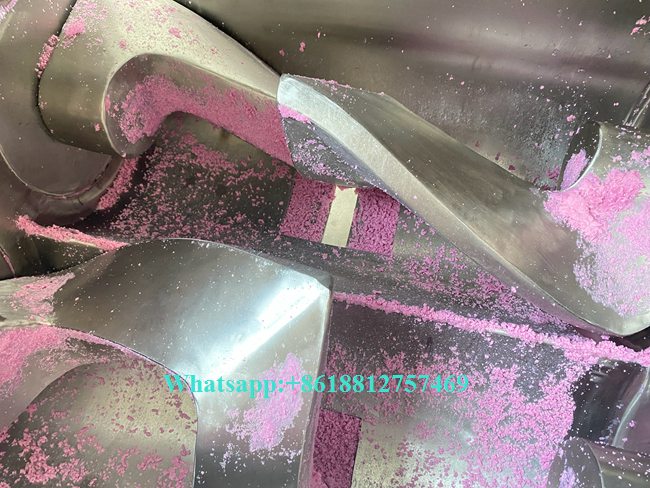

Its model is JHY-50, made of carbon steel, and can handle 50 kg of materials per batch, and mixing can be completed in just 5 minutes. The semi-spiral agitator design allows the materials to be mixed more evenly and thoroughly. The equipment has a power of 3kW, a size of 1730x700x1750, and a weight of 440kg. The compact structure does not take up too much space, but can stably exert high efficiency as part of the bar soap making machine system.

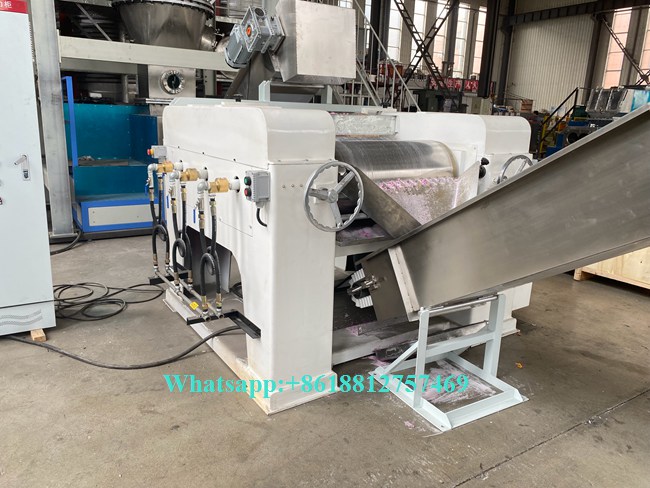

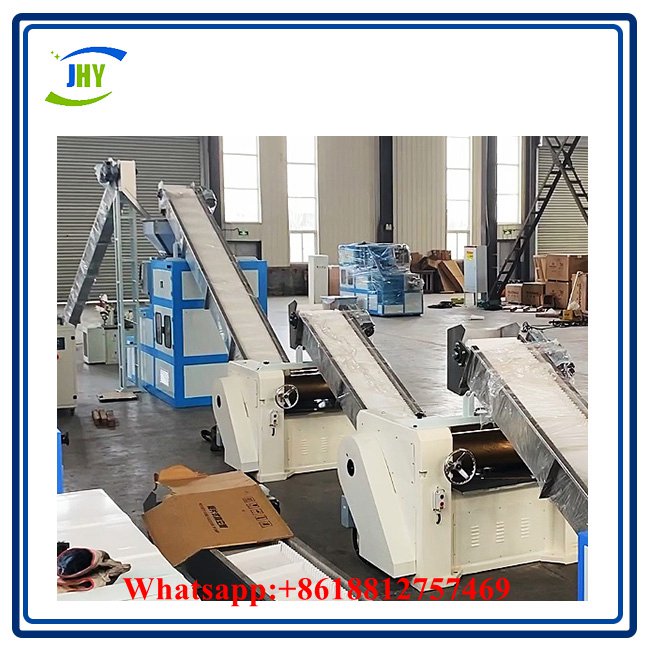

Three-roller mill:

The three-roller mill can make the soap particles and additives mix more evenly, make the soap body structure tight, and improve its density and quality. The roller diameter is Φ150mm and the working surface length is 300mm.

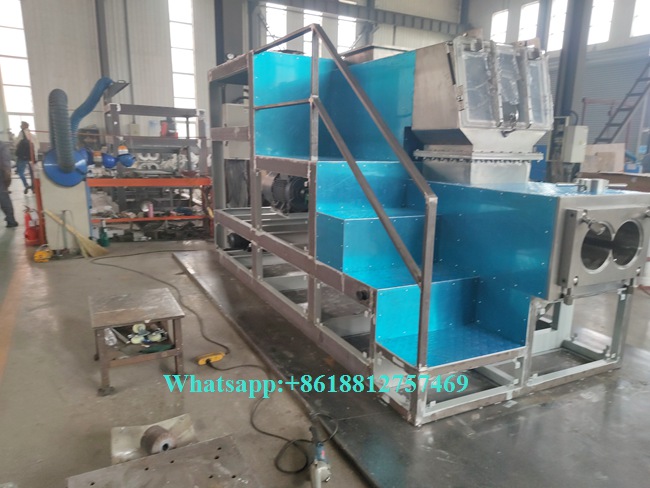

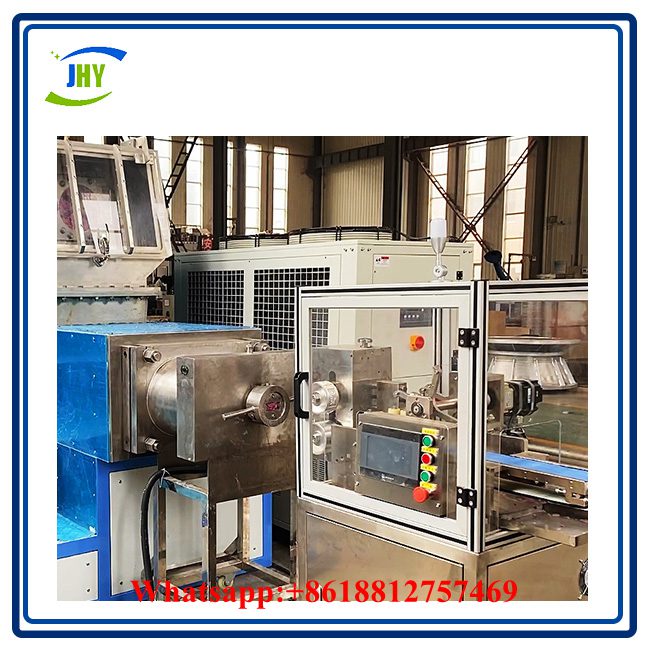

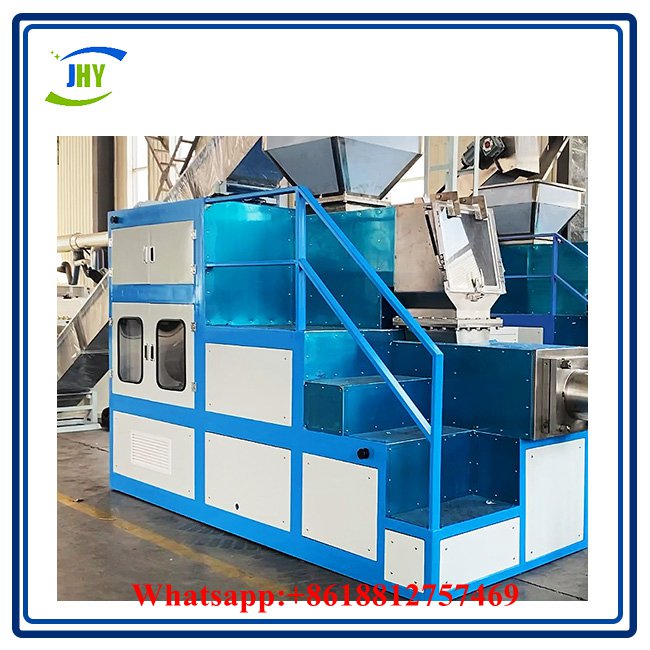

Duplex Plodder:

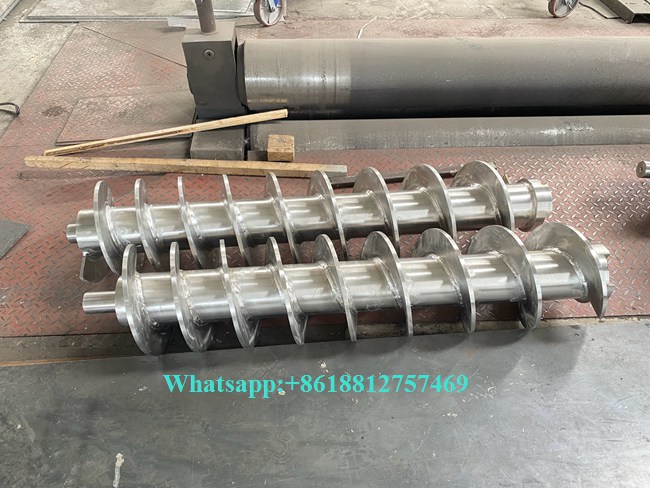

Duplex Plodder can refine, exhaust and extrude the ground materials into soap bars. The extrusion of the upper and lower screws and two layers of perforated plates makes the soap bars compact and smooth. The lower bar is equipped with a variable frequency speed motor and a hardened gear reducer, model XS-300, with a production speed of 200-300 kg/hour, a screw outer diameter of Φ160mm, a motor power of 4+5.5kW.
