Laundry soap making machine
Raw materials: Soap noodles, pigments, flavors, etc.
Capacity: 500-1000 kg per hour. Customization is supported.

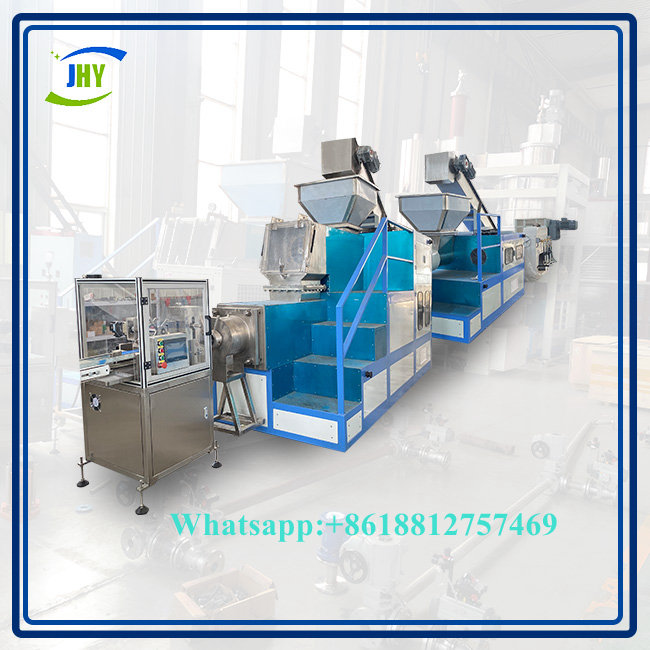

A laundry soap making machine with a production capacity of 500 -1000 kg/h

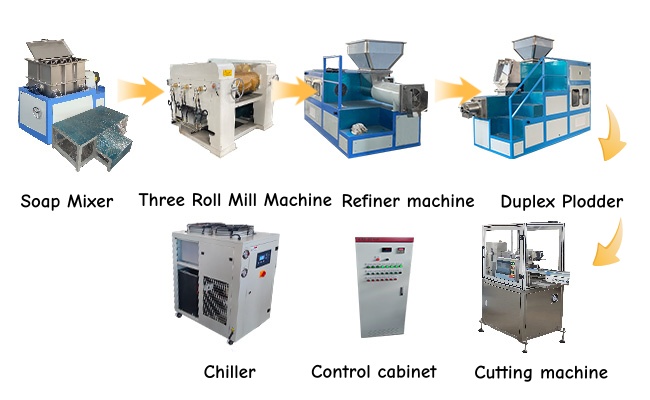

This is a laundry soap making machine line, and the raw material is soap noodles. It can produce laundry soaps of various sizes available on the market. The patterns can be customized, and you can have your company's unique LOGO customized as well.
| Material | Carbon steel,Stainless steel |
| Output | 100 kilograms per batch |
| Power | 5.5kW |
| Mixing time | 5-10 minutes. |

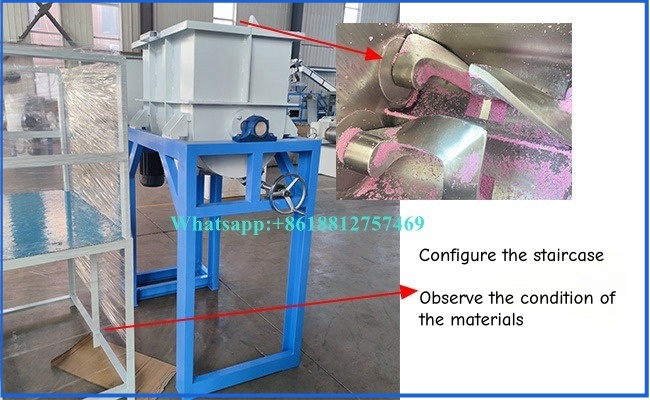

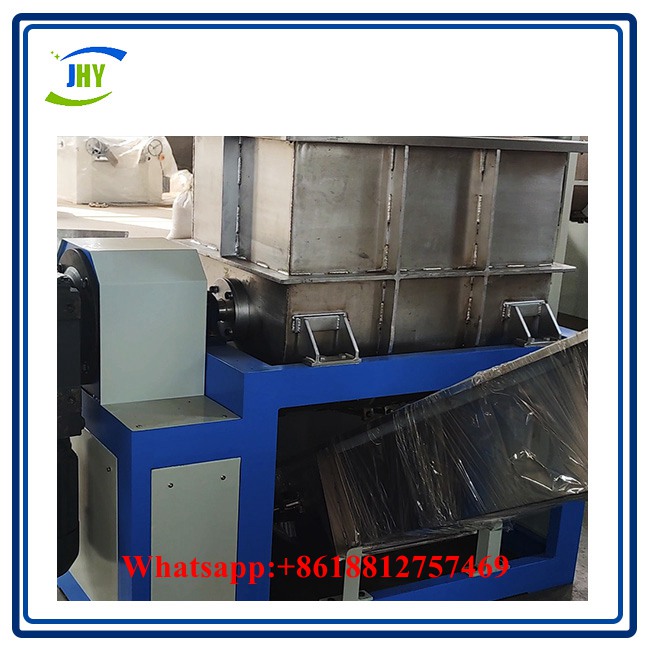

This mixer adopts a double-helical shape and operates at different speeds, enabling better mixing of raw materials such as soap noodles and pigments.
| Roll diameter | Φ405 |
| Motor power | 11kW |
| Roll length | 780mm |

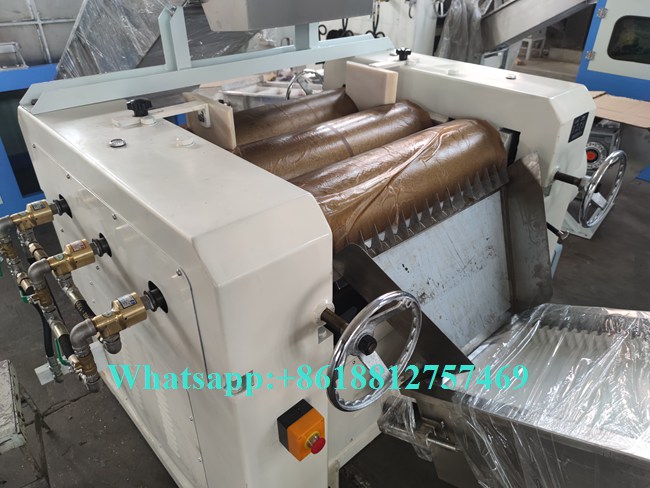

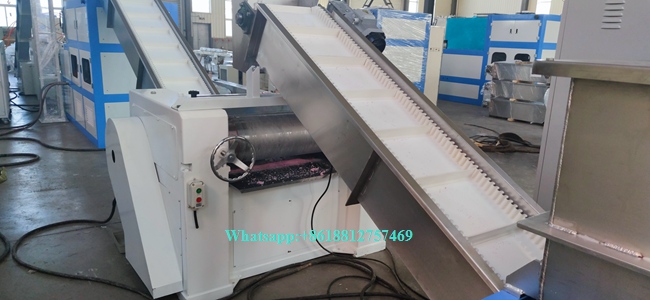

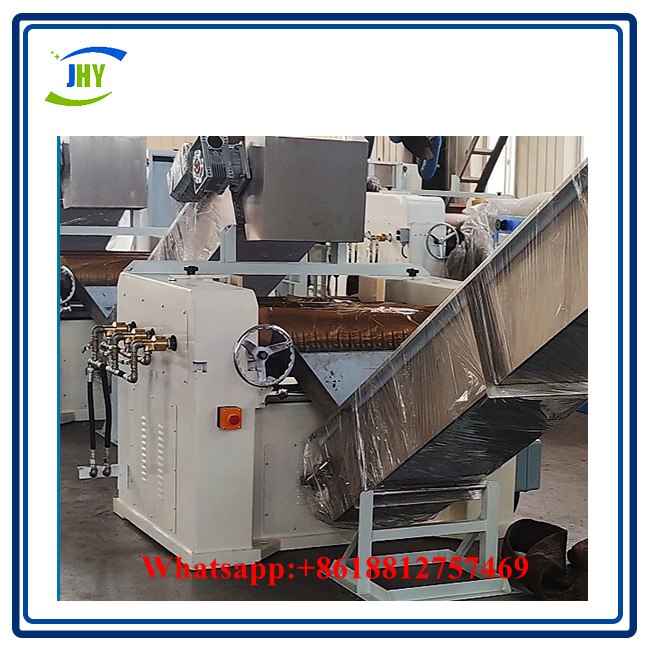

When raw materials enter the first two rollers, the speed differential creates shear force to grind them. The materials then enter the third roller for further grinding, improving the uniformity of the mixture.
| Capacity | 500-1000 |
| Screw outer diameter | Φ200 mm |
| Motor power | Upper motor 7.5 kW, Lower motor 11 kW |

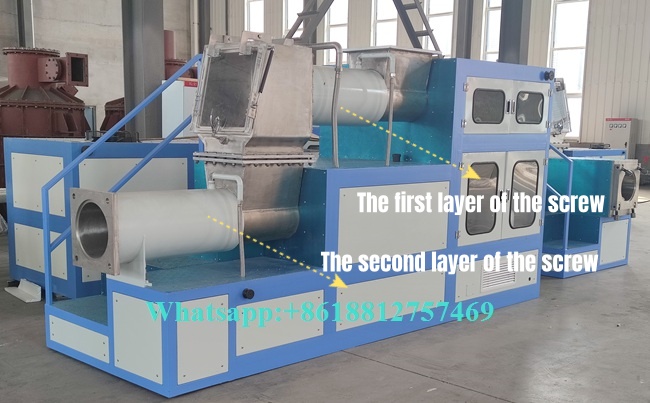

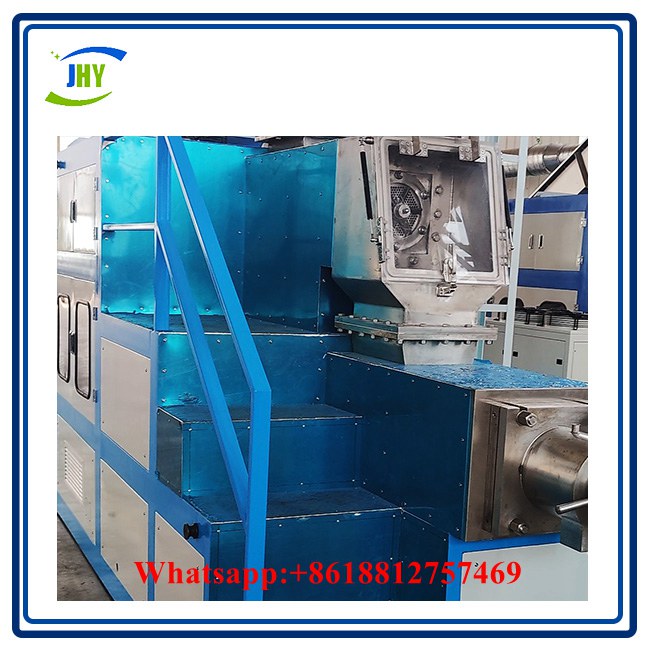

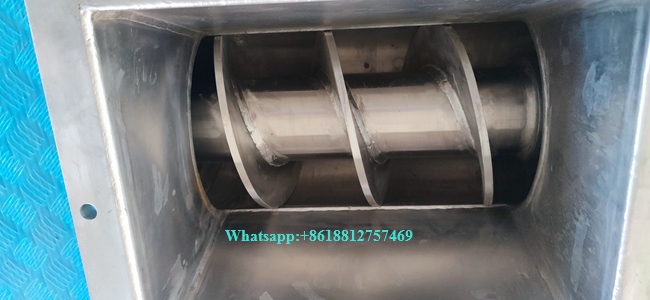

The Duplex Plodder uses two screws and two layers of perforated plates to extrude and refine materials, resulting in soap bars with a compact structure and smooth surface.
| Size | 400*1100*1750mm |
| Power | 2.2kW |

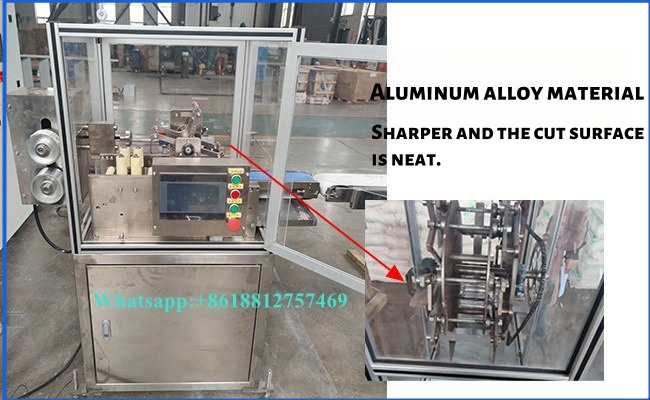

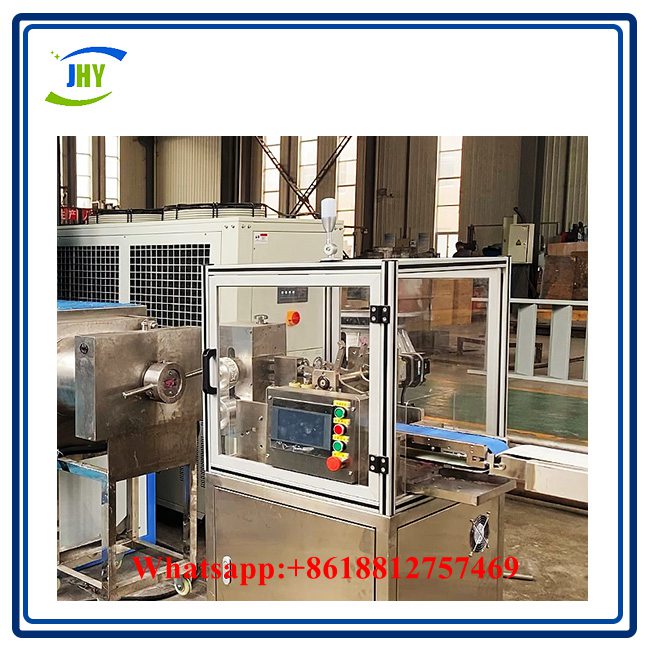

It can be automatically adjusted according to the output of the Duplex Plodder. The rollers have patterns, and the patterns can be customized. It is equipped with a touch-screen device, making the operation simple.
